Siemens Connector_RJ45 Authorized Dealer in Nashik

Siemens CONNECTOR_RJ45 Authorized Dealer in Nashik

Overview

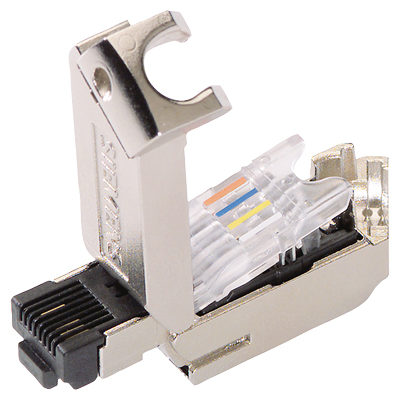

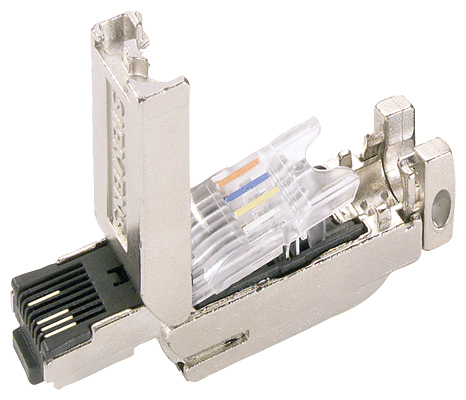

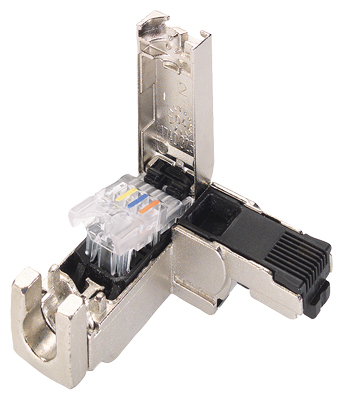

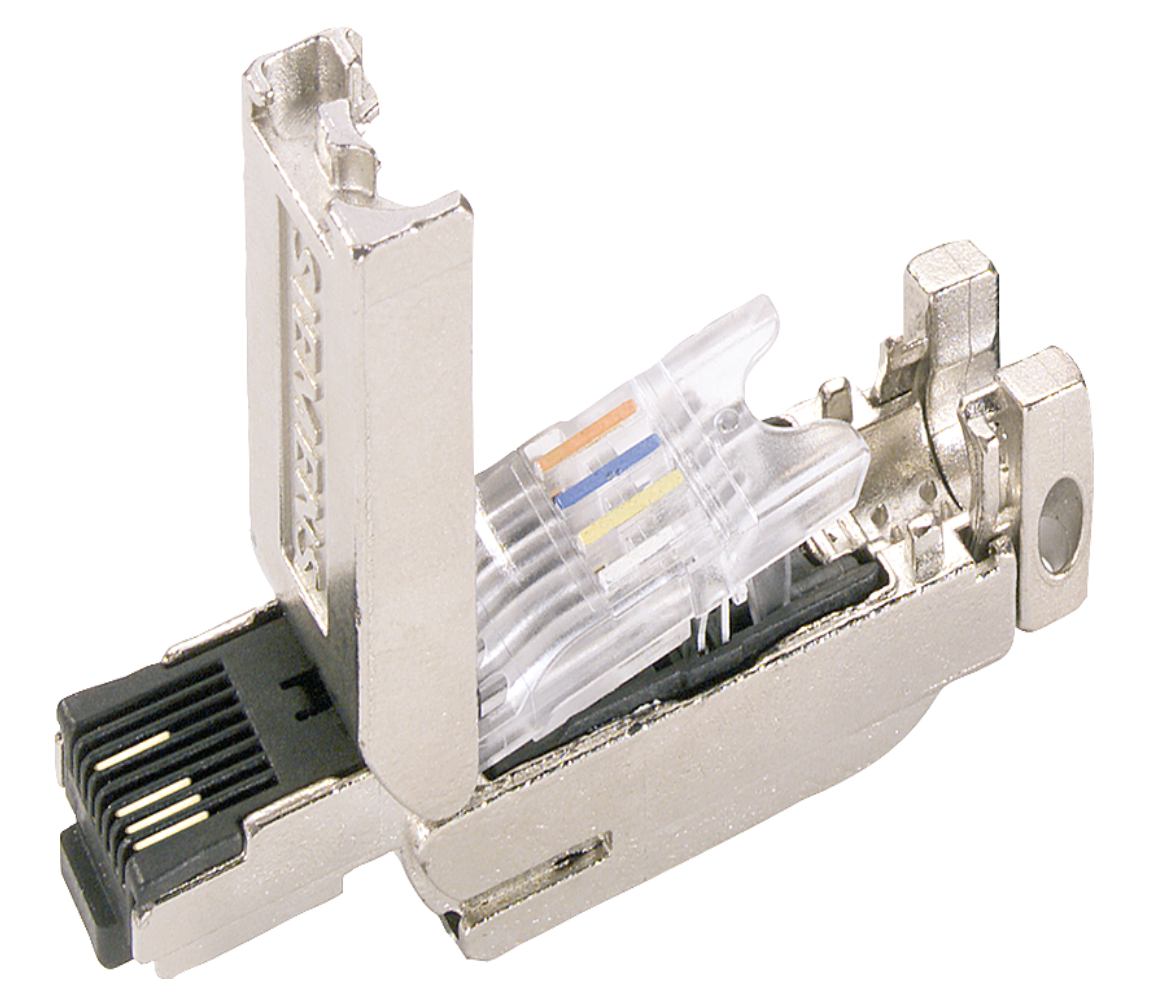

SIMATIC CONNECTOR_RJ45
The Siemens 6GK19011BB102AE0 RJ45 Connector, RJ45 Connector service provider, RJ45 connector, electrical & electronic connectors, Siemens, Siemens FastConnect Series Male RJ45 Connector, Cat6, FTP Shield Straight, Brand Siemens, Ethernet Connector Type RJ45 Connector, Gender Male, LAN Category Cat6, Connector Type RJ45, Shield Type FTP, Orientation Straight, IP Rating IP20, Implementing two-by-two Industrial Ethernet FC installation cables to enable direct device connections up to 100 metres apart without the need for patching
Without the requirement for specialised tools, 4-wire Twisted Pair installation cables (100 Mbps) can be easily connected (insulation displacement contacts).
Error-reducing connection system made possible by the coloured insulation displacement termination and visible connection area
Design compatible with the industry (sturdy metal casing, no small, easily lost pieces)
Excellent EMC deflection and shielding (metal enclosure)
Strain relief built right into installation wires
Compliant with ISO IEC 11801 / EN 50173 (RJ45) Additional strain and bending relief of plug-in connection available by latching plug on device enclosure, such as SIMATIC S7-1500, SCALANCE X, SCALANCE S, and SCALANCE M.

Advantages:
Rj45 connector, Siemens 6GK19011BB102AE0, Rj45 connector service provider, Rj45 connector, electrical & electronic connectors, Automate Industrial Solutions, Pune, Maharashtra, 758-9197, Siemens, Siemens FastConnect Series Male RJ45 Connector, Cat6, FTP Shield Straight, Brand Siemens, Ethernet connector type RJ45 connector, gender male, LAN category Cat6, connector type RJ45, shield type FTP, orientation straight, IP rating IP20.

The best option for field-level RJ45 plug-in connector installation

FastConnect system installation that saves time and is error-free

The robust metal casing of the RJ45 plug-in connector prevents interference.

Dependable strain relief and shield attachment are combined

Colour coding and the transparent contact cover help to prevent mistakes.

A system of Industrial Ethernet FastConnect plug-in connectors that work well together and a wide selection of FastConnect cables that are compatible with PROFINET and have the necessary UL approvals

Utilisation
The FC RJ45 plug is appropriate for use on office equipment as well as in industrial settings due to its small and durable construction.
The Industrial Ethernet FastConnect installation cables (2 x 2; 4-core twisted-pair cables) may be quickly and easily installed in the field thanks to the Industrial Ethernet FastConnect RJ45 plugs 2 x 2.
The Industrial Ethernet FastConnect stripping tool makes it easy to handle and quickly and securely install the cable connection to the cable by removing the jacket and shield from the end of the cable in a single step. It can also be installed in challenging circumstances because every cable connector component is captive.
Without the need for patch technology, point-to-point communications (100 Mbps) for Industrial Ethernet can be built between two terminal devices or network components up to a distance of 100 m thanks to the plug-in connectors.
Siemens 6GK19011BB102AE0 RJ45 Connector, RJ45 Connector Service Provider, RJ45 Connector, electrical & electronic connectors, Automate Industrial Solutions, Pune, Maharashtra, 758-9197, Siemens, Siemens FastConnect Series Male RJ45 Connector, Cat6, FTP Shield Straight, Brand Siemens, Ethernet Connector Type RJ45 Connector, Gender Male, LAN Category Cat6, Connector Type RJ45, Shield Type FTP, Orientation Straight, IP Rating IP20.

Construct. There are three designs of industrial Ethernet FC RJ45 plugs available:

including a 180-degree straight cable outlet

The SIMOTION and SINAMICS cable outlets are slanted at a 45° angle.

Featuring an angled 90° cable outlet (such as the SIMATIC ET 200S).

They serve as the best means of connecting Industrial Ethernet FastConnect cables to network components and terminal devices. The plugs are best protected from data connection errors by their sturdy, industrial metal housing.
The FC cable variations can be easily and error-free connected thanks to the four included insulation displacement contacts. The insulation displacement terminations, which have been hinged open, are forced down to ensure dependable conductor contact after the stripped cable end has been placed into them.
The plug-in connectors (IE FC plug 180°) can be used on devices with single sockets as well as equipment with numerous sockets (blocks) because of their small design.
The Siemens 6GK19011BB102AE0 RJ45 Connector, RJ45 Connector service provider, RJ45 connector, electrical & electronic connectors, Siemens, Siemens FastConnect Series Male RJ45 Connector, Cat6, FTP Shield Straight, Brand Siemens, Ethernet Connector Type RJ45 Connector, Gender Male, LAN Category Cat6, Connector Type RJ45, Shield Type FTP, Orientation Straight, IP Rating IP20.

Product Number	Product Description
6GK1901-1BB10-2AA0	Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP cable 2x 2, 180° cable outlet 1 pack = 1 unit, with a sturdy metal housing and FC connection technology.
6GK1901-1BB10-2AB0	Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP cable 2x 2, 180° cable outlet 1 box equals 10 units, with a sturdy metal shell and FC connection technology.
6GK1901-1BB10-2AE0	Industrial Ethernet FastConnect RJ45 plug 180 2x 2, RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP cable 2x 2, 180° cable outlet 1 pack = 50 units, with a sturdy metal shell and FC connection technology.
6GK1901-1BB20-2AA0	For IE FC TP Cable 2x 2, 90° cable outlet 1 pack = 1 unit, Industrial Ethernet FastConnect RJ45 plug 90 2x 2 is an RJ45 plug-in connector (10/100 Mbit/s) with a sturdy metal shell and FC connection mechanism.
6GK1901-1BB20-2AB0	Industrial Ethernet FastConnect RJ45 plug 90 2x 2, RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP Cable 2x 2, with a sturdy metal shell and FC connection mechanism; 1 box = 10 pieces.
6GK1901-1BB20-2AE0	Industrial Ethernet FastConnect 90 2x 2 RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP Cable 2x 2; 1 pack = 50 units; 90° cable outlet. Rugged metal casing. FC connection method.
6GK1901-1BB30-0AA0	Industrial Ethernet FastConnect RJ45 plug 145 2x 2, RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP cable 2x 2, 145° cable outlet 1 pack = 1 unit, with a sturdy metal shell and FC connection technology.
6GK1901-1BB30-0AB0	Industrial Ethernet FastConnect RJ45 plug 145 2x 2, RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP cable 2x 2, 145° cable outlet 1 pack equals 10 units, with a sturdy metal shell and FC connection technology.
6GK1901-1BB30-0AE0	Industrial Ethernet FastConnect RJ45 plug 145 2x 2, RJ45 plug-in connector (10/100 Mbit/s) for IE FC TP cable 2x 2, 145° cable outlet 1 pack=50 units, with a sturdy metal shell and FC connection technology.
